Integrating the Gripper and Robot model within Moveit2 – Part 1: Merging the URDF

Integrating the Gripper and Robot model within Moveit2 – Part 1: Merging the URDF

Overview

In this tutorial, we cover the first step of integrating a gripper with your cobot by merging the robot and gripper models into a single URDF/Xacro file. This unified description is required before generating the MoveIt2 configuration package.



Requirements

Before starting, make sure you have the following installed:

1) Ubuntu 22.04.5 LTS
2) ROS 2 Humble
3) Fairino Moveit2 plugin


To include the gripper in your MoveIt2 setup, the process mainly consists of three steps:

1. Create a unified robot description file (URDF) that combines both the robot and the gripper.
2. Generate a MoveIt2 configuration package, either manually or using the MoveIt2 Setup Assistant.
3. Configure the MoveIt2 package for integration with the FR collaborative robot.

This article covers the first step of generating the merged URDF file.

Creating the URDF for the Gripper & Cobot

Create the Workspace

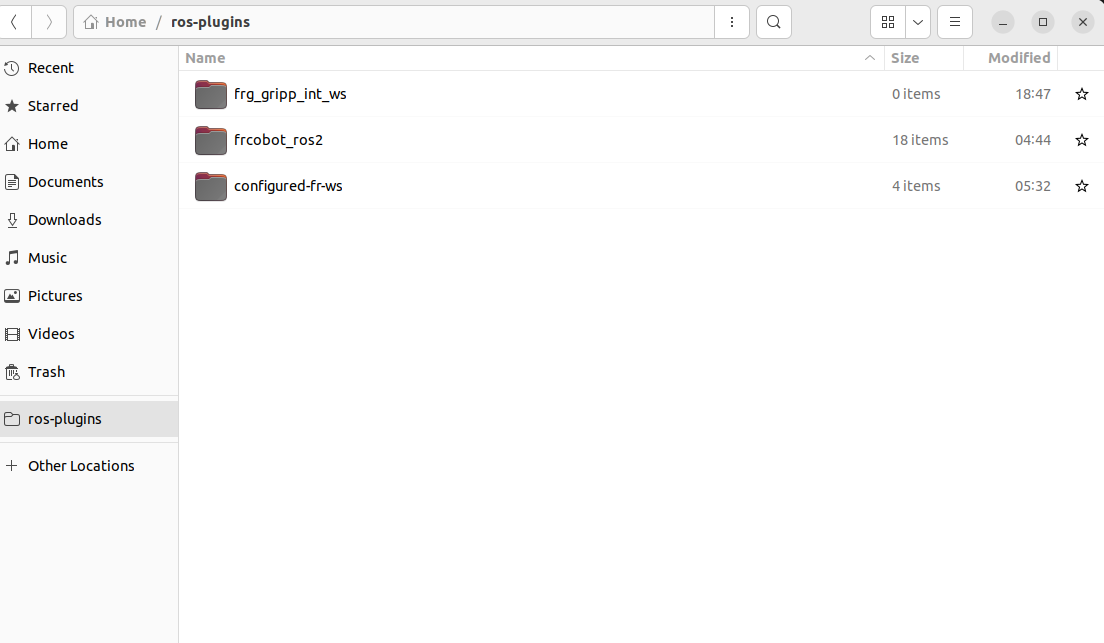

Before starting this tutorial, create a new workspace named frg_gripp_int_ws, as shown in the screenshot below.
This workspace will contain the integrated URDF, along with the mesh files for both the gripper and the cobot.

Notes
cd ~/path/to/fairino/plugin
# Make frg_gripp_int_ws directory and src subfolder
mkdir -p frg_gripp_int_ws/src


Clone the Gripper Repository

We recommend contacting the gripper manufacturer to obtain the required URDF and mesh files.
In this tutorial, we will use the AG Gripper from DH Robotics.

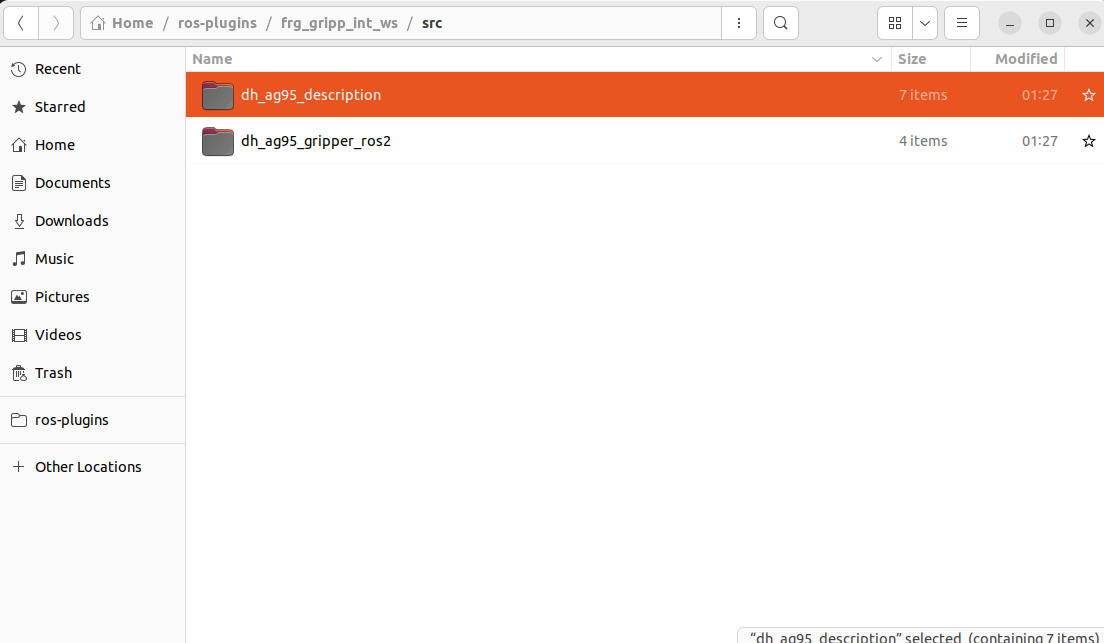

After cloning the repository, copy the required folder directly into the 'src' directory as shown in the screenshot below.

Notes
# copy description files from the inside the ros2 folder
cp -r dh_ag95_gripper_ros2/dh_ag95_description .




You can then delete the remaining files from 'dh_ag95_gripper_ros2', since they will not be needed for this tutorial.

Notes
rm -rf dh_ag95_gripper_ros2

Copy the Description Package from the Fairino Plugin

Notes
cp -r ~/ros-plugins/frcobot_ros2/fairino_description .

This command copies the fairino_description package from the Fairino ROS2 plugin workspace into your current 'src' directory.

Create the Integration package structure


Create the integration structure using the following commands:
Notes
# ensure you are inside frg_gripp_int_ws
cd frg_gripp_int_ws/src

mkdir -p fairino_gripper_integrated_desc/meshes/{gripper,robot}
mkdir -p fairino_gripper_integrated_desc/urdf
touch fairino_gripper_integrated_desc/package.xml
touch fairino_gripper_integrated_desc/CMakeLists.txt

After running the commands, the directory structure should look like the following:
Info
frg_gripp_int_ws/
└── src/
    ├── fairino_description/
    ├── dh_ag95_description/
    └── fairino_gripper_integrated_desc/
        ├── meshes/
        │   ├── gripper/
        │   └── robot/
        ├── urdf/
        ├── package.xml
        └── CMakeLists.txt

Copy Mesh Files


Next, copy the required mesh and URDF files into their corresponding folders.

From
Notes
/path/to/ros-plugin/frcobot_ros2/fairino_description/meshes/fairino5_v6

Alert
This is a reminder to replace 'path/to/...' and 'fairino5_v6' with your actual file path and desired robot model

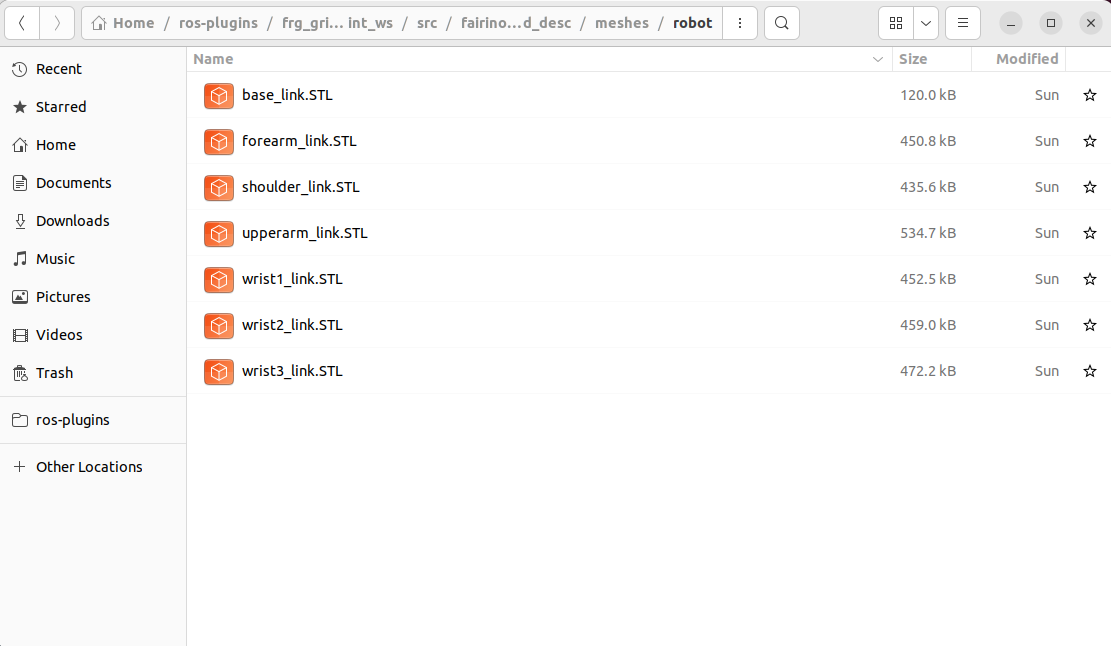

Copy all STL mesh files into:
Notes
frg_gripp_int_ws/src/fairino_gripper_integrated_desc/meshes/robot



Then repeat the same process for the gripper files.
Copy the gripper mesh files from:
Notes

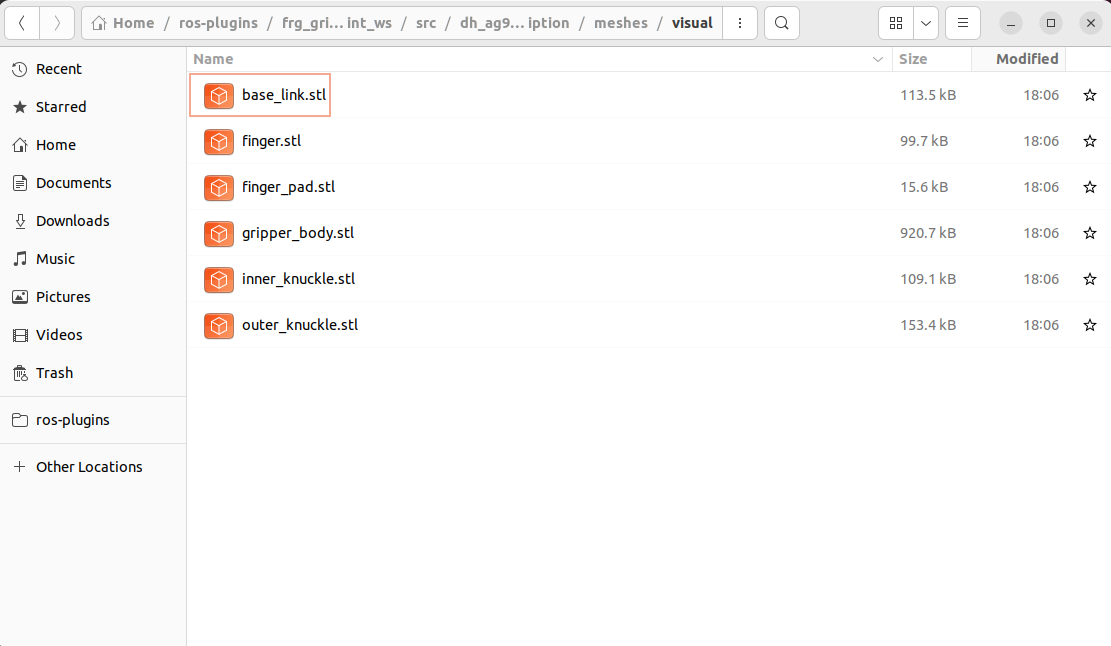

/path/to/ros-plugin/frg_gripp_int_ws/src/dh_ag95_description/meshes/visual



to:
Notes

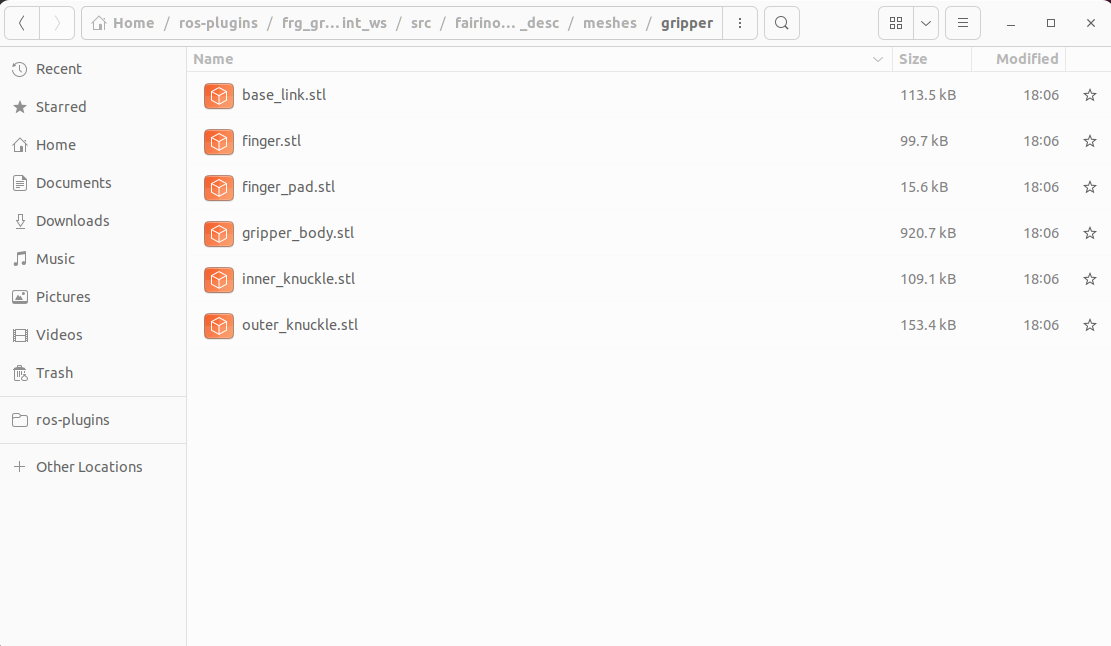

/path/to/ros-plugin/frg_gripp_int_ws/src/fairino_gripper_integrated_desc/meshes/gripper

Copy URDF Files


After moving the mesh files you can move the URDF from
Notes

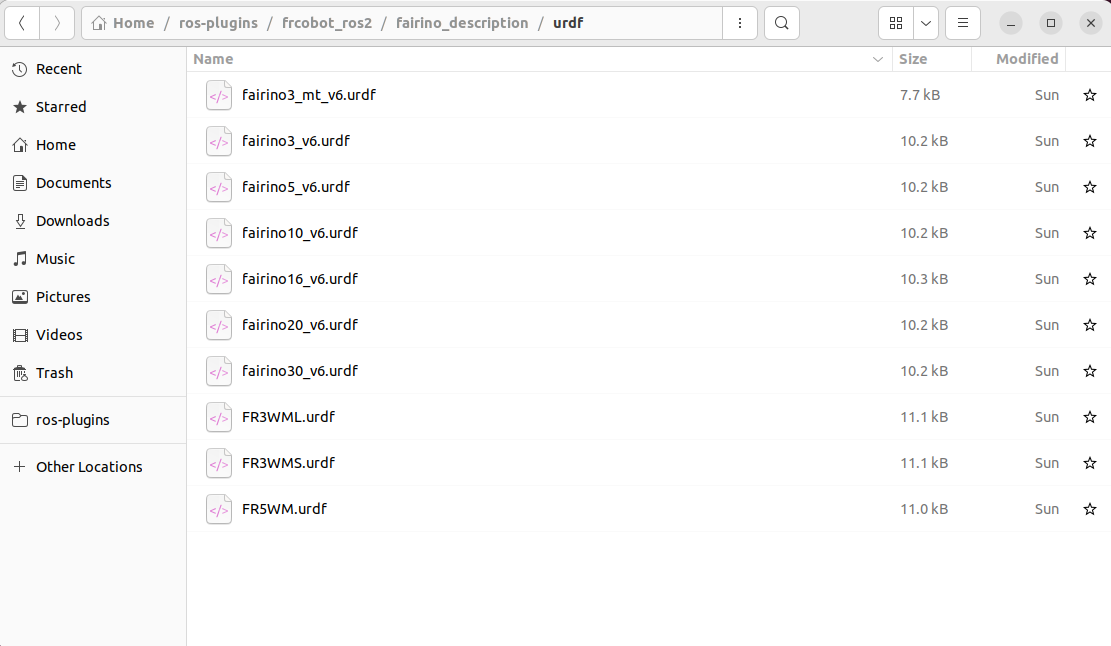

/path/to/ros-plugin/frcobot_ros2/fairino_description/urdf

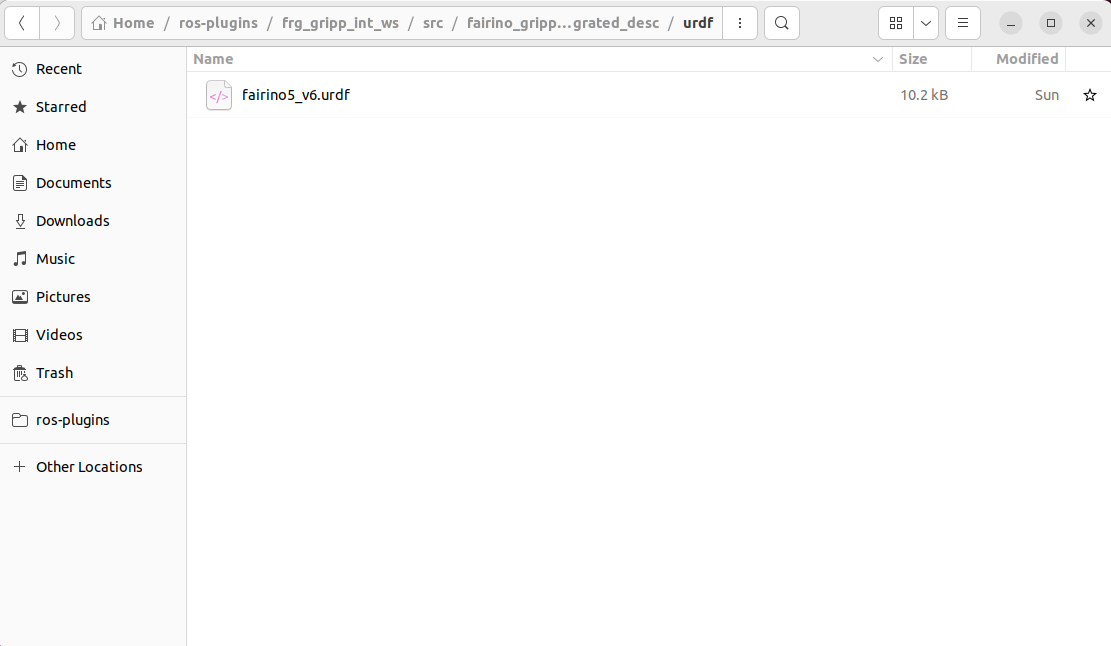

Copy the fairino5_v6.urdf (or other desired robot URDF) file into:
Notes
/path/to/ros-plugin/frg_gripp_int_ws/src/fairino_gripper_integrated_desc/urdf




Then repeat the same process for the gripper files by copying the gripper mesh files from:
Notes

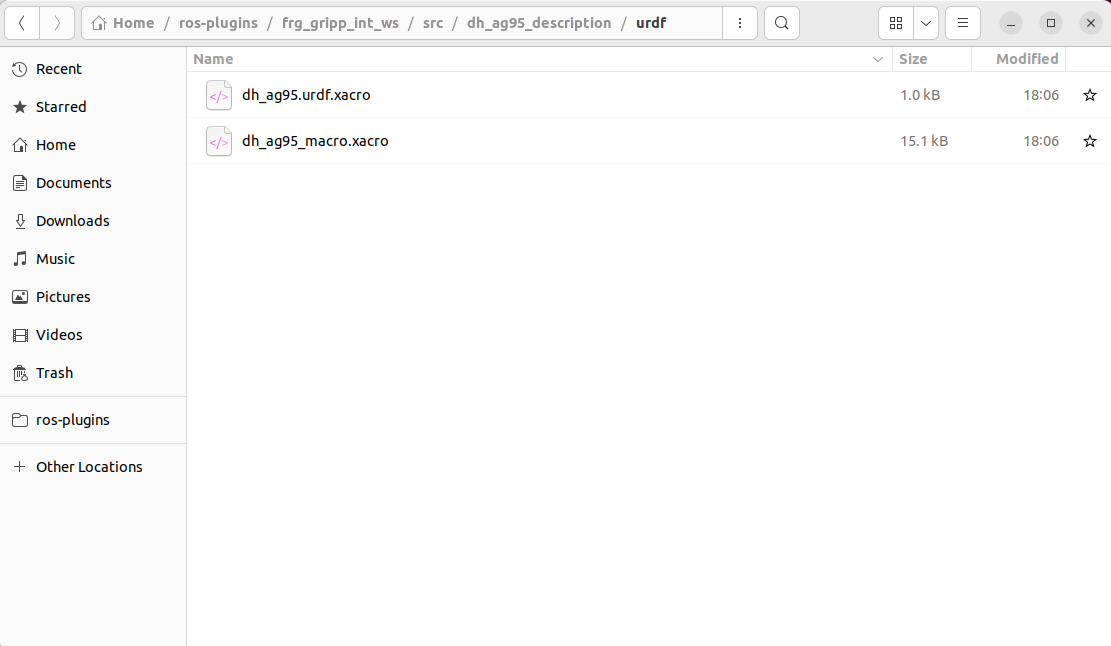

/path/to/ros-plugin/frg_gripp_int_ws/src/dh_ag95_description/urdf



to:
Notes

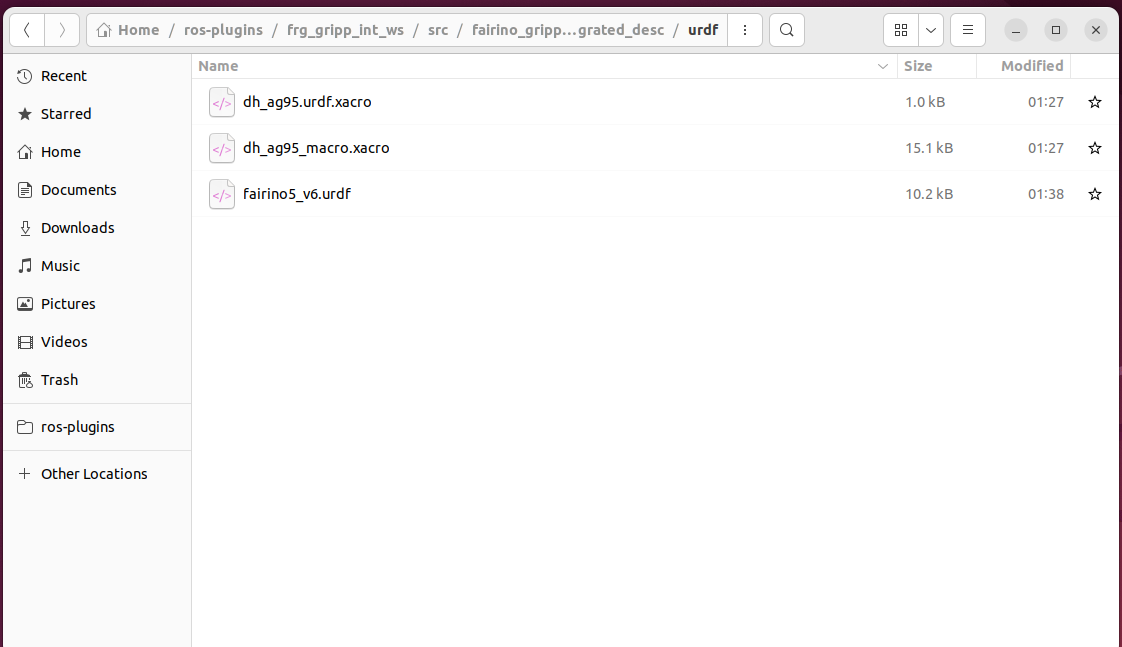

/path/to/ros-plugin/frg_gripp_int_ws/src/fairino_gripper_integrated_desc/urdf


Integrate the URDFs


Inside the 'urdf' folder, create a new Xacro file:
Notes
touch integrated.urdf.xacro

Then open the file and integrate the gripper with the robot’s 'wrist3_link':

Quote
<?xml version="1.0"?>
<robot xmlns:xacro="http://www.ros.org/wiki/xacro" name="fairino_with_ag95">

  <!-- Fairino robot description urdf, you might need to modify the file name if you use a different robot model -->
  <xacro:include filename="$(find fairino_gripper_integrated_desc)/urdf/fairino5_v6.urdf" />

  <!-- Gripper macro you might need to modify the file name if you have a different gripper -->
  <xacro:include filename="$(find fairino_gripper_integrated_desc)/urdf/dh_ag95_macro.xacro" />

  <!-- Attach gripper to wrist link, you might need to change the offset of the gripper if needed  -->
  <xacro:dh_ag95_gripper parent="wrist3_link" prefix="gripper_">
    <origin xyz="0 0 0" rpy="0 0 0" />
  </xacro:dh_ag95_gripper>

</robot>


Modify the `CMakeLists.txt` & `package.xml` Files


Update the CMakeLists.txt file with the following content:
Quote
cmake_minimum_required(VERSION 3.8)
project(fairino_gripper_integrated_desc)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
  add_compile_options(-Wall -Wextra -Wpedantic)
endif()

find_package(ament_cmake REQUIRED)

install(DIRECTORY
  meshes
  urdf
  DESTINATION share/${PROJECT_NAME}
)

ament_package()

Update the package.xml file with the following content:

Quote
<?xml version="1.0"?>

<package format="3">
  <name>fairino_gripper_integrated_desc</name>
  <version>0.0.0</version>

  <description>
    URDF description package for the Fairino integrated gripper
  </description>

  <maintainer email="user@todo.todo">user</maintainer>
  <license>Apache-2.0</license>

  <buildtool_depend>ament_cmake</buildtool_depend>

  <exec_depend>urdf</exec_depend>
  <exec_depend>xacro</exec_depend>

  <export>
    <build_type>ament_cmake</build_type>
  </export>
</package>

Test the URDF

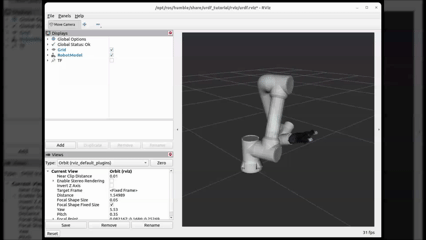

You can then visualize the setup by using the following command after building:
Notes
colcon build
source install/setup.bash
ros2 launch urdf_tutorial display.launch.py model:=$(ros2 pkg prefix fairino_gripper_integrated_desc)/share/fairino_gripper_integrated_desc/urdf/integrated.urdf.xacro

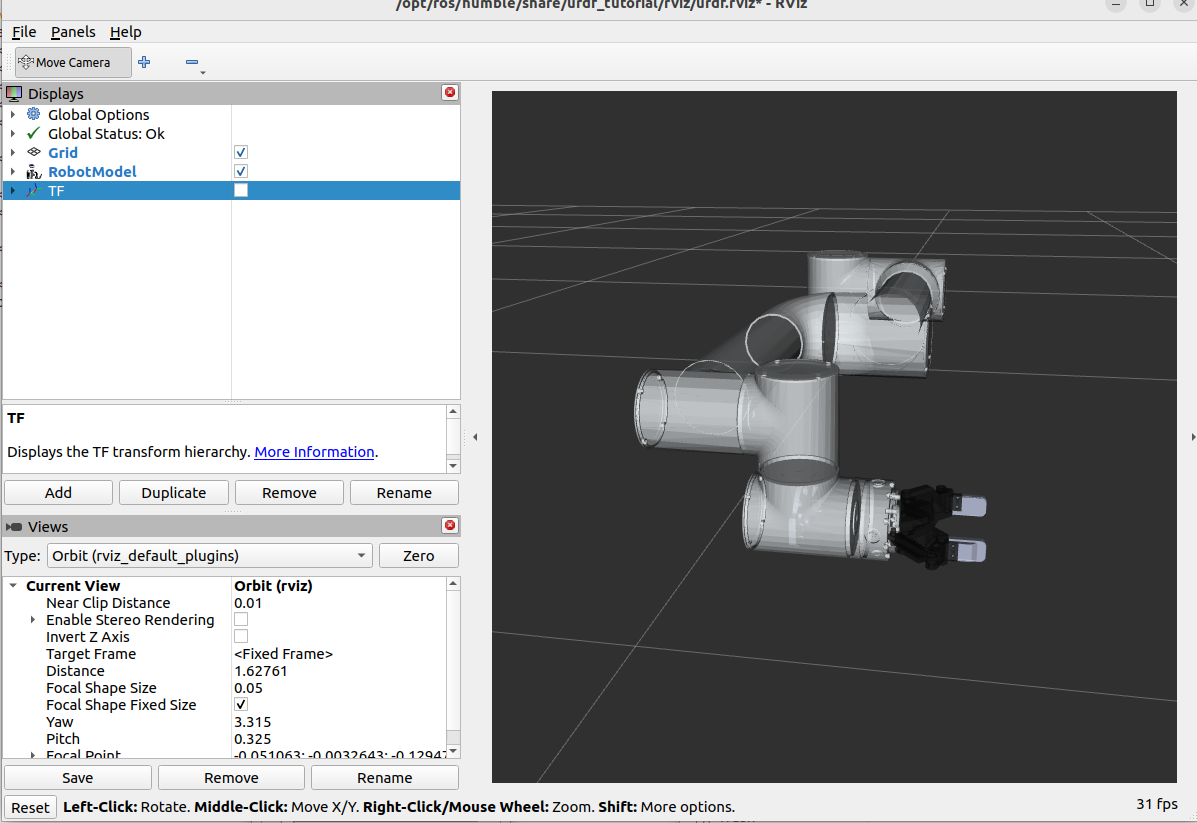

As shown above, the gripper initially appears to collide with the robot body. To correct this, we can modify the 'z' offset value inside the integrated URDF file created earlier.

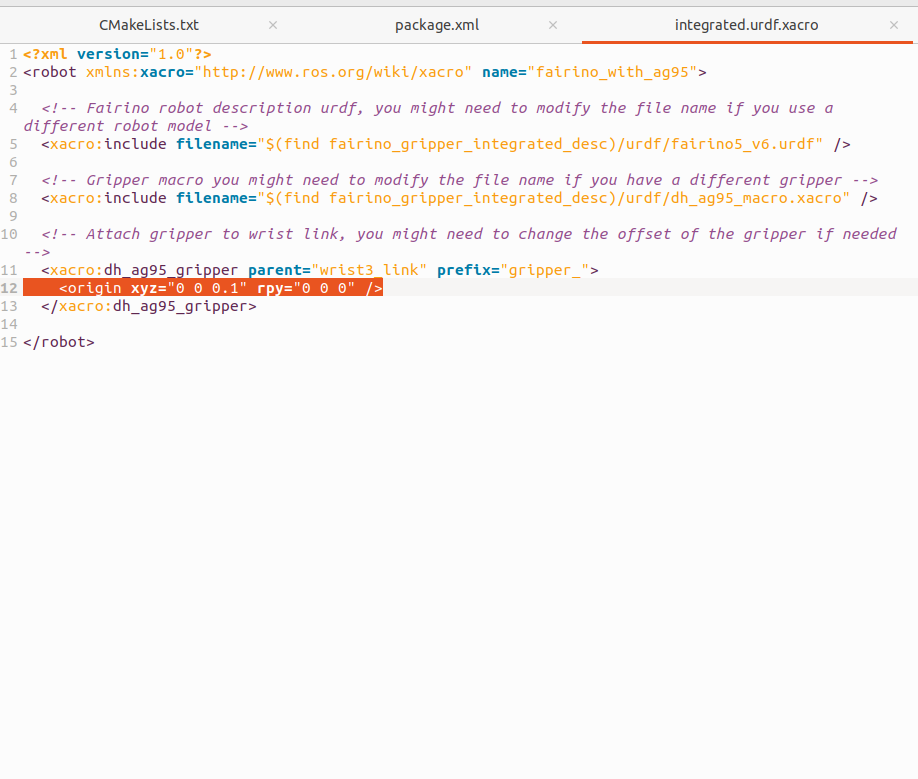

This adjustment process usually involves some trial and error until the desired alignment is achieved. For example, setting the 'z' value in 'integrated.urdf' to 0.1 results in the following configuration.

Info
After modifying the URDF, make sure to rebuild the workspace and source the installation again.

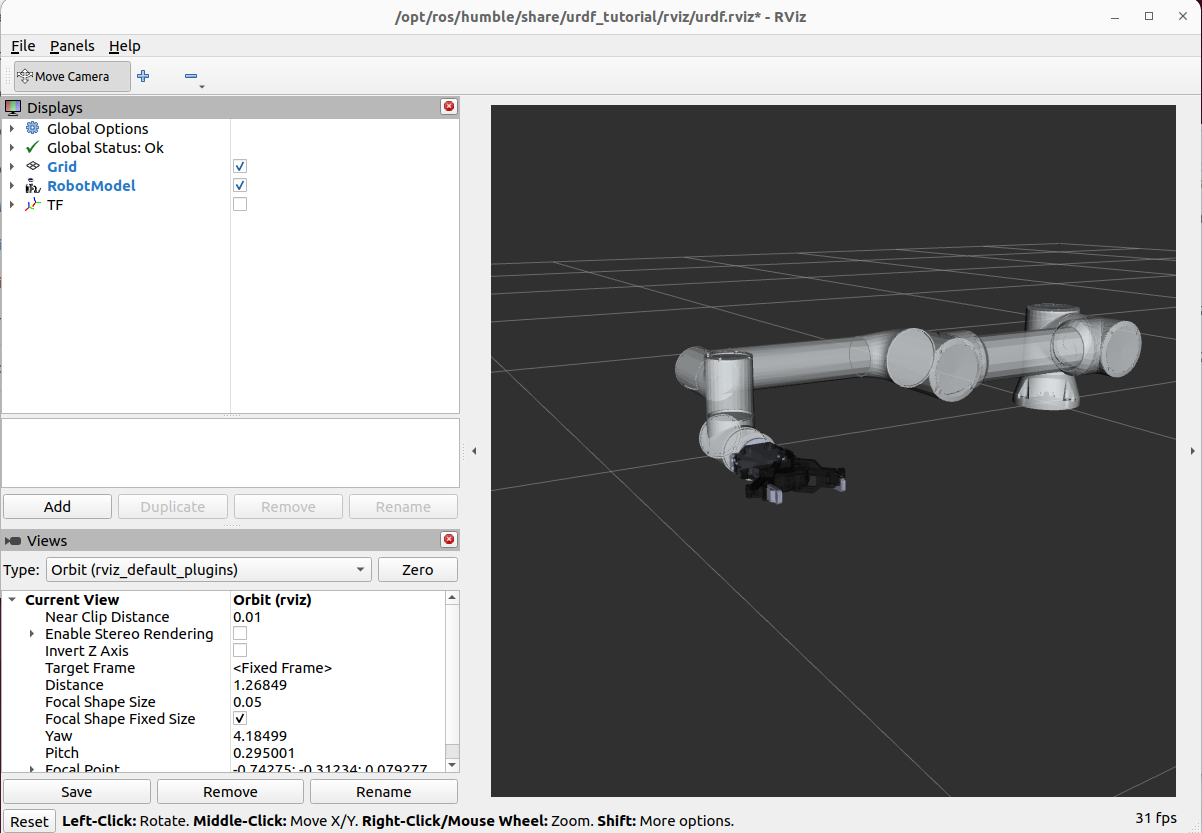

After applying the modification, the gripper is properly shifted relative to wrist3, as shown below.



Import the Integrated Model into Moveit2

Notes
source install/setup.bash
# enforce directX
export QT_QPA_PLATFORM=xcb
ros2 launch moveit_setup_assistant setup_assistant.launch.py
